DOIE UV-CTP uses the most advanced and stable guide rail technology, using automatic loading way and 405nm laser diode, digital process workflow, high precision dot, low cost UV plates, reducing the cost.

DOIE UV-CTP uses special laser diode and internal drum design, to ensure the biggest energy transfer efficiency and exposure precision.


Model X-0322U
Light Channels 32
Output Speed(P/h) 17 (P size:1030mm×800mm)
29 (P size:510mm×400mm)
Light Source 405 nm Laser Diode
Output Resolution (dpi) 2400
Dot Reproduction 1%-99%
Register Accuracy (mm) < 0.01
Plate Size (mm) Max. 1160×940; Min. 450×320
Suitable Plates Various UV-CTP(CTcP) plates, Traditional PS Plates
Plate Thickness (mm) 0.15~0.30
Plate Loading and Unloading Loading: Automation(Standard Set)
Unloading: Automation
Vacuum Fixation
Plate Position Accuracy (mm) 0.2
Plate Balance Automatic Balance
Data Interface USB,1000Mbit/s
Ambient Temperature 25oC±3oC
Humidity 20-80% (Non-condensing)
Machine Dimension (mm) L2200×W1100×H1050
Net Weight (kg) 1500
Power Supply less than 6KW/220V(5% more or less), 50/60Hz

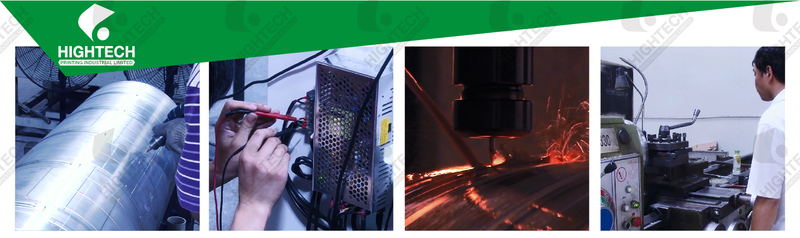

More Video about machine and factory:
